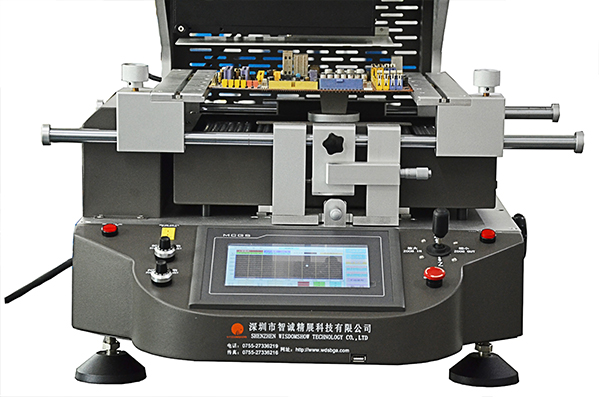

Independent 3 heating zones temperature control system

1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.

2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed、set and correct on the touch screen at any time.

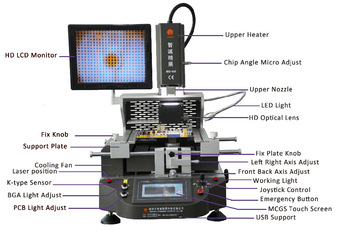

Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split、amplification、lessening、fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA nozzle can be rotated in 360 degree for easy installation and replacement.

2.X、Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.


Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.


※Two working mode: semi-auto,manual
※Optical alignment system with normal camera

  Technology parameter

1	Power supply	AC 220V±10％ 50/60Hz
2	Total power	Max 5300W
3	Heater power	Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W
4	Electrical material	Driving motor+PLC smart temp.controller+color touch screen
5	Temperature controlling	（high precision K-sensor）（Closed Loop),independent temp.controller,the precision can reach ±1℃
6	Locating way	V shape slot,PCB support jigs can adjust，laser light do fast centering and position
7	PCB size	Max 450×390mm Min 10×10 mm
8	Applicable chips	Max 80×80mm Min 1×1 mm
9	Overall dimension	L650×W630×H850mm
10	Temperature Interface	1 pcs
11	Weight of machine	60KG
12	Color	Grey









---

---

---
