Single Product

WDS-700 bga

Purchase Qty. / Reference FOB Price

$22000.00

country of origin:
selling point:

Product Description
Packaging & Shipping
FAQ

Independent 2 heating zones temperature control system
1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;temperature precision control within ±1℃.8 segment temperature control independently.
2.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed、set and correct on the touch screen at any time.

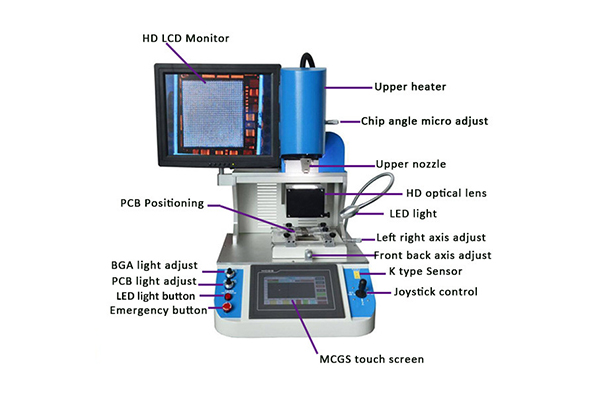

Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split、amplification、lessening、fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2.X、Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.

1.Power supply：AC 110V/220V±10％ 50/60Hz
2.Total power：Max 2500W
3.Heater power：Upper temp.zone 1200W,second temp.zone 1200W
4.Electrical material：Driving motor+PLC smart temp.controller+color touch screen
5.Temperature controlling：（high precision K-sensor）（Closed Loop),independent temp.controller,the precision can reach ±1℃
6.Locating way：V shape slot,PCB support jigs can adjust
7.PCB size：Max 140×180mm Min5×5mm
8.Overall dimension：L450×W470×H650mm
9.Temperature Interface：1pcs
10.Weight of machine:30kg

11.Color :White&blue

1	Power supply	AC 110V/220V±10％ 50/60Hz
2	Total power	Max 2600W
3	Heater power	Upper temp.zone 1200W,second temp.zone 1200W
4	Electrical material	Driving motor+PLC smart temp.controller+color touch screen
5	Temperature controlling	（high precision K-sensor）（Closed Loop),independent temp.controller,the precision can reach ±1℃
6	Locating way	V shape slot,PCB support jigs can adjust
7	PCB size	Max 140×180mm Min5×5mm
9	Overall dimension	L450×W470×H650mm
10	Temperature Interface	1 pcs
11	Weight of machine	30KG
12	Color	White&blue
