WDS-520 bga repair machine pc

Purchase Qty. / Reference FOB Price

$4500.00

country of origin:
selling point: Using the industrial touch screen,the temperature is displayed on touch screen by real-time curve,with functions of curve analysis and curve changes. Can store hundreds of users temperature curve

Product Description
Packaging & Shipping
FAQ

WDS-520 Features：
Using the industrial touch screen,the temperature is displayed on touch screen by real-time curve,with functions of curve analysis and curve changes.
Can store hundreds of users temperature curve data.With laser position light,locate the chip repair center fast,with high location accuracy and efficient operational.

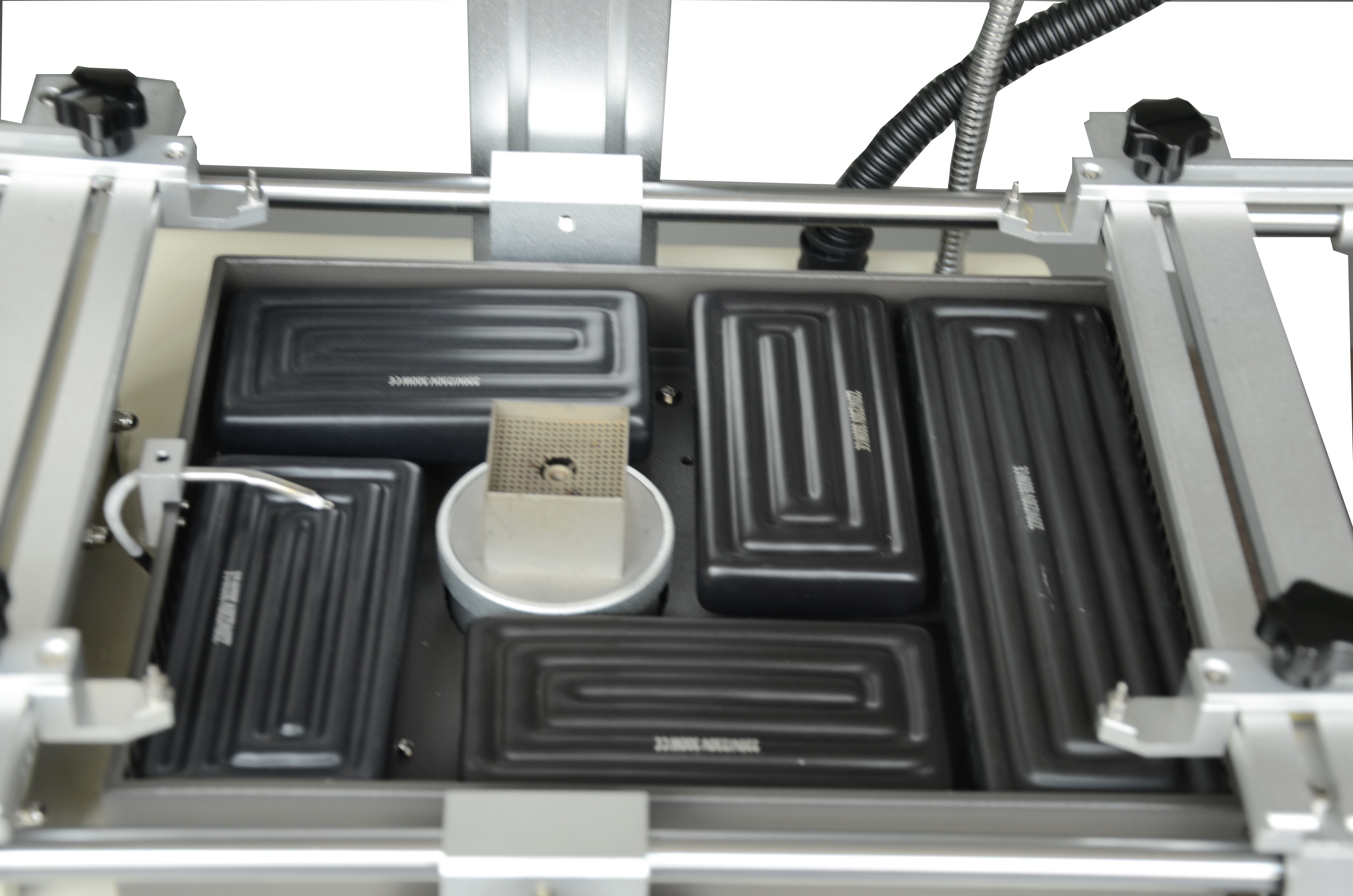

Independent 3 heating zones,upper and lower heater are hot air,lower heating zone can be adjusted up and down.Lower heater is infrared,temperature accuracy is controlled within ±2 degree,upper and lower heater can be moved front and back,left and right.Upper and lower heater zones can set 9 segments temperature controlling at the same time.Infrared heating zone can adjust the output power according to the actual requirement.

Titanium alloy BGA nozzle can be rotated in 360 degree,easier to repair the different place of chip.Adopting the high accuracy K-type thermocouple close-loop control.The external temperature measuring interface detects the temp accurately.

With built-in vacuum pen,working light,cross cooling fan,laser light.Having alarm in advance function,intelligent air regulation software,more convenient than the national button adjustment controlling.
With CE certification.it’s equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened.Under this situation that the temperature is out of control,circuit can cut off the power automatically with double over-temp protection function.

Power supply	Ac220v±10%,50/60hz
Power	3800W
Heating power	Upper heating power,Max. 800W
	Lower heating power,Max. 1200W
	Infrared heating power,Max. 1800w
PCB location way	V-shape card slot+universal jigs and fixture
Temperature controlling	High accuracy K-type thermocouple close-loop control,independent temperature control,the precision up to ±2 degree
Electrical material	High sensitive touch screen+temperature control module＋microcontrollers
PCB size	Max300×280mm Min 10×10 mm
Chip size	Max60×60mm Min 1×1 mm
PCB thickness	0.3-5mm
Temperature sensor	1pcs
Overall dimension	L460×W480×H500mm
Weight	20kg
